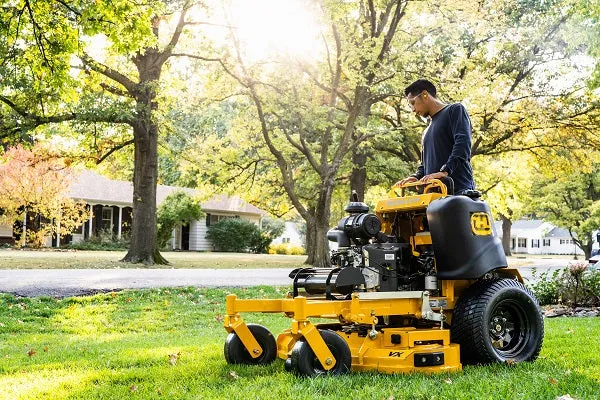

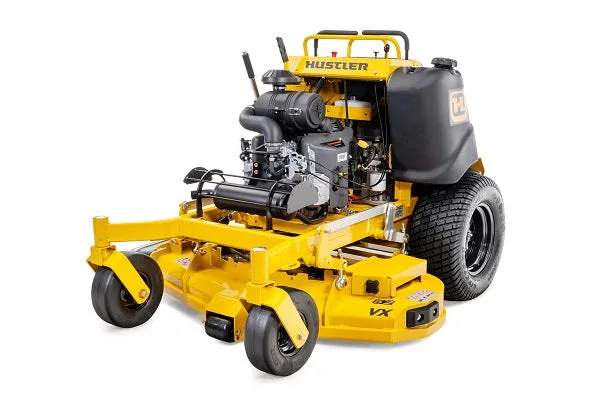

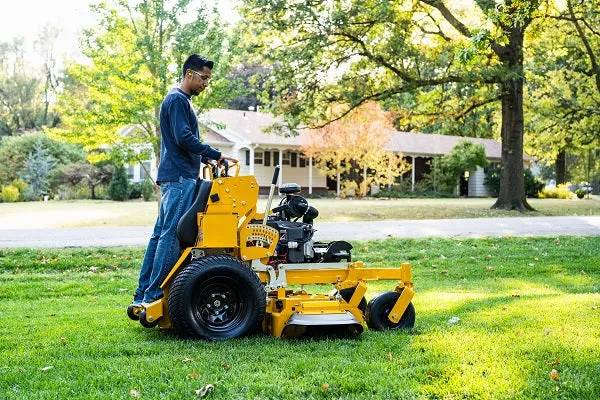

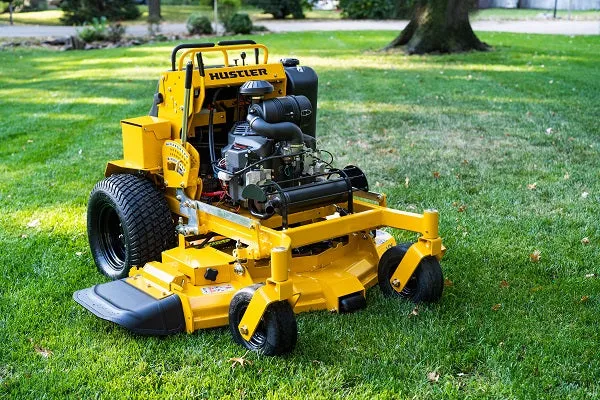

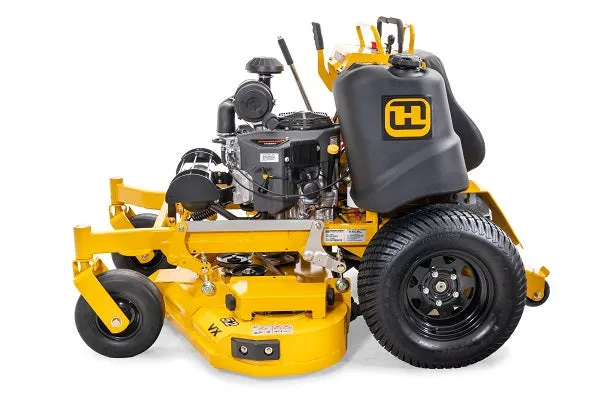

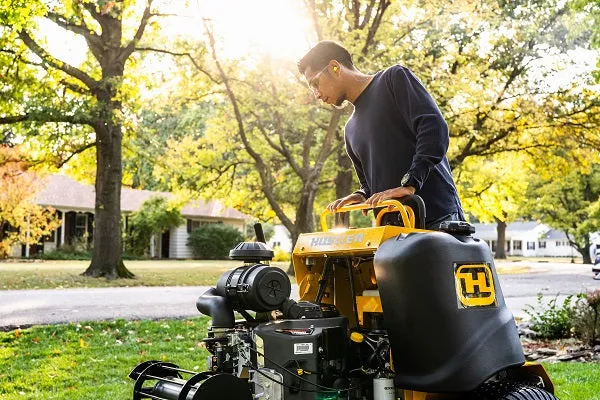

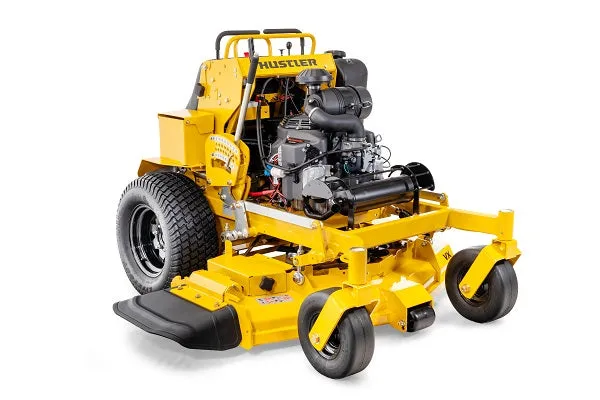

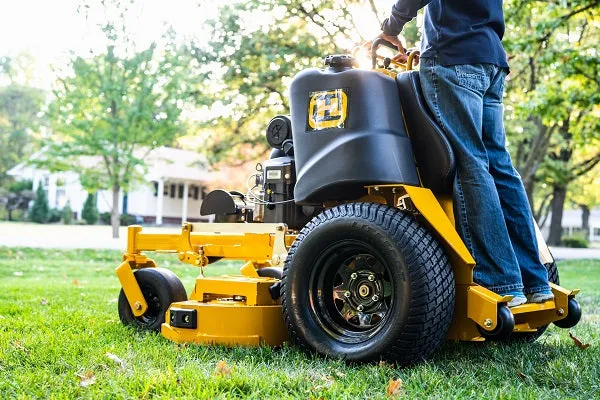

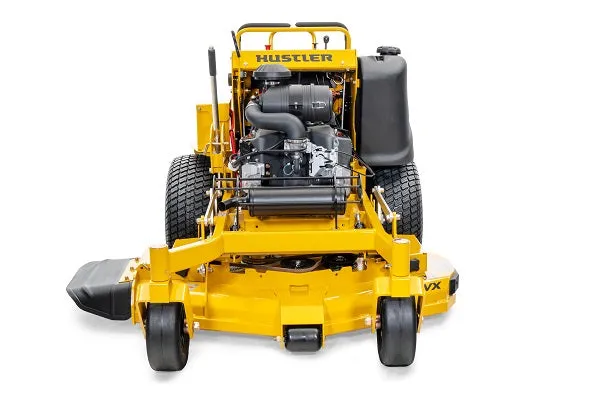

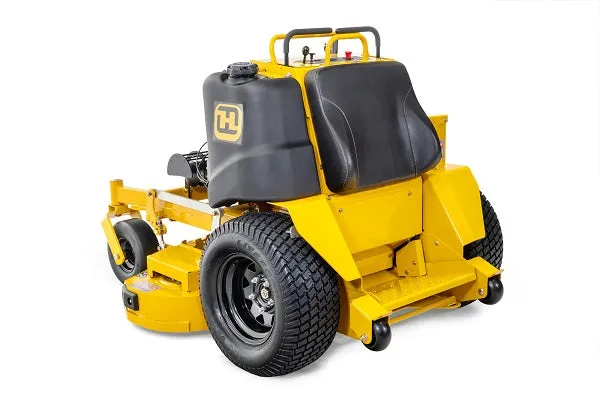

A Stand-On With Exceptional Operator Comfort, Control, And Maneuverability
Hustler's Super S® features superior operator comfort and positioning, operator-friendly controls, and a compact stance that makes navigating tight spaces easy.
- Pulley Covers: Toolless removable pulley covers for easy maintenance.
-
Park Brake: Hand-operated lever to set the parking brake.
-

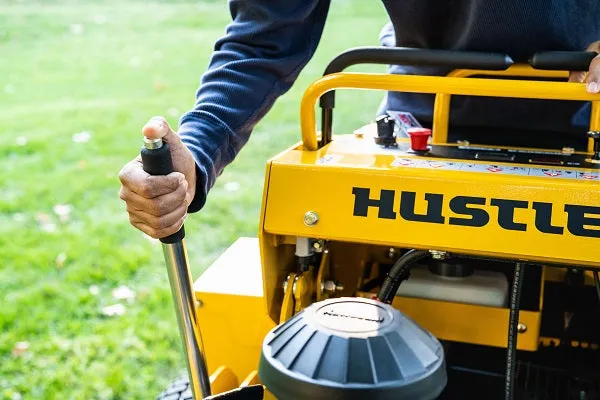

Cut Height Adjustment: Hand-operated lever and pin to adjust deck/cutting height.
- Wide Operator Platform: For all-day mowing comfort and operator stability.
-

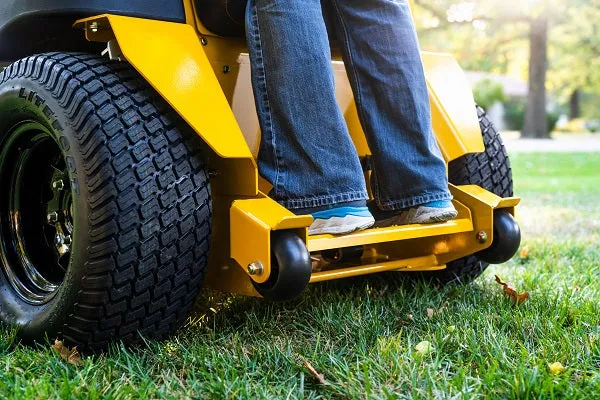

Adjustable Foot Platform: Spring-loaded suspension platform for all-day comfort.
- Service-Friendly Design: Designed to make maintenance and service fast and easy.
- 24" Rear Drive Tires: For superior traction. (48”, 52”, 60”)

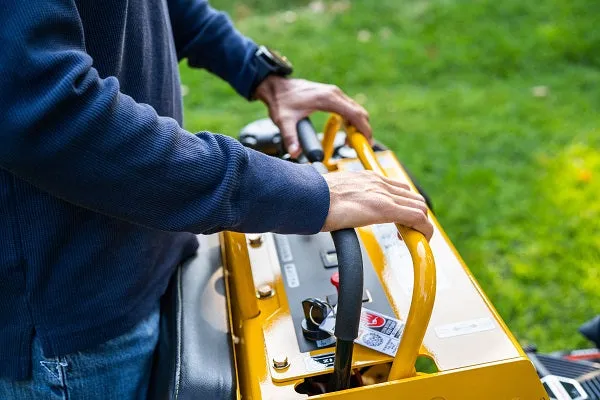

- Adjustable Speed Controls: Allows you to go at your own pace for added control. Also helps with training new operators.

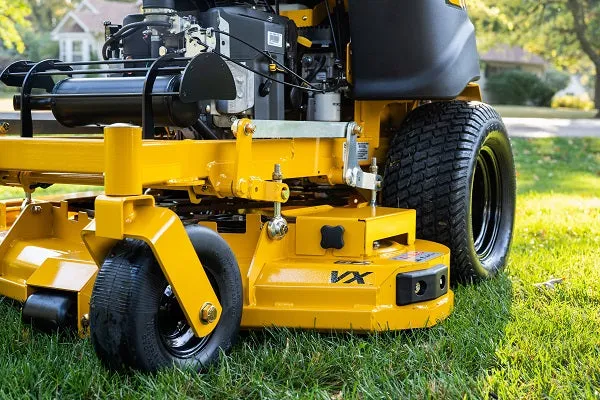

- VX4 Deck: Fabricated 7 ga. steel engineered for an extreme vacuum for enhanced performance and cut quality.
- Compact Design: Small footprint, can go where other machines can't.
Hustler Super S Accessories |
|
| Side Mesh Catcher 3.5 Bushel | |
| Side Steel Catcher 4.4 Bushel | |
|
Standard Aluminum Side Catcher 3.3 Bushel (Accelerator) |
|
|
Jumbo Aluminum Side Catcher 5 Bushel (Accelerator) |
|
| Mulching Kit 48" | |
| Stripe Kit 48"/52"/60" | |
| Light Kit 48"/52"/60" | |
| Trash Receptacle Kit 48"/52"/60" | |
__________________________________________________________________
Specifications
Engine |
|
| Engine Manufacturer | Kawasaki FX691 |
| Engine Horsepower | 22 |
| Displacement | 726cc |
| Cooling | Air Cooled |
| Air Cleaner |
Heavy duty canister |
| Engine Warranty | 3 year |
Drive System |
|
| Type | Dual Hydrostatic |
| Transmission | Hydro-Gear 12cc pump with Parker TL wheel motors |
| Fuel Capacity | 7.3 gal. |
| Ground Speed (Fwd) | Up to 9 mph |
| Parking Brake |
Hand-operated drum brakes
|
Deck |
|
| Cutting Width | 48" |
| Cutting Height | 1.5" to 5.5" |
| Deck Depth | 5.5" |
| Deck Lift | Hand Operated |
| Number of Blades | 3 |
| Blade Length | 16.50" |
| Blade Tip Speed | 18,500 |
| Spindles | Ductile cast iron with steel shaft and sealed ball bearings |
| Deck Engagement | Electric PTO Clutch |
| Deck Material |
7 gauge fabricated with 7 gauge wrappers
|
| Spindle Mounts | 7 gauge with 7 gauge doubler |
| Impact Trim Area | 11 gauge formed channel with rolled edge |
Construction |
|
| Frame | 1.5" X 3" steel tubing |
| Engine Plate | 7 gauge with 11 gauge jackshaft doubler |
| Operator Platform | 7 gauge with embossed tread pattern |
| Front Axle | Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap
|
| Front Caster Fork | Fabricated 3/8" steel |
Dimensions |
|
|
Front Tire (Inches) |
13 x 5-6 Run Flats |
| Drive Tire (Inches) | 24 x 9.5-12 |
| Weight (lbs) | 1144 |
| Height (Inches) | 47 |
| Length (Inches) | 68 |
| Width w/ Chute Up (Inches) | 49.3 |
| Tire-to-Tire Width (Inches) | 45.8 |
| Productivity (Acres Per Hour) | 3.49 |
Warranty |
|
| Warranty | 5 Year / 1200 Hour (First 2 Years No Hour Limit) |
Dimensions with Catcher |
|
| Catcher Style | Side Catcher |
| Powered / Non-Powered | Non-powered |
| Catcher Capacity | 3.5 bushel |
| Mower Length w/ Catcher | 64" |
| Mower Width w/ Catcher | 68" |
If you have any questions about this Hustler Super S 48” stand-on mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
